Cardiac MRI

Background

The first attempts to image the heart with cardiac MRI date back to the early 1980’s.  However, due to the rapid motion of the heart and relatively long acquisition times of early equipment (several minutes per slice), only large pathological lesions such as tumors, pericardial, and large vessel abnormalities near the heart could be detected. With gradient echo cardiac gated acquisitions developed in the late 1980’s it became possible to reliably image the beating heart to assess wall and valve function. A single slice with multiple phases for cine display of the moving heart could be obtained in several minutes. While the early publications were exciting, echocardiography remained the workhorse of non-invasive cardiac function due to its low cost, speed, ease of use including portability, and widespread availability.  MRI largely remained a second tier test when important unanswered questions are not resolved on echocardiography. During the late 1990’s faster acquisition MRI techniques using better surface coils, sequences including turbo GRE, parallel imaging techniques, etc. have now made it possible to acquire exquisitely detailed images of the moving heart in just short breath holds.  Some techniques even allow real time imaging at more than 20 images per second just as performed in echocardiography making it possible to image even the sickest patients with arrhythmias. The focus of research in cardiac MRI is to push the envelope with faster temporal resolution and higher spatial resolution while still maintaining signal to noise. This will ultimately allow reliable visualization of the coronary arteries without using ionizing radiation.

Boca Raton Regional Hospital is proud to be the only hospital in Palm Beach County to currently perform state of the art MRI with the latest techniques including perfusion imaging, myocardial viability, breath hold white and dark blood imaging with quantitative analysis tools to assess wall motion and valve function.  We have fellowship-trained radiologists with cardiac MRI and CT experience who continue to push the envelope in new clinical applications.

Clinical Indications for Cardiac MRI

Evaluation for cardiac/pericardial anatomic abnormalities including masses, thrombus, etc.
Evaluate wall motion and valve function especially when echocardiography leaves unanswered questions or when surgery is planned. The patient can be stressed with exercise or drugs to accentuate wall motion or valvular dysfunction.
Detect coronary anomalies.
Myocardial Viability – Gadolinium contrast enhanced MRI is the gold standard for detection and quantification of myocardial infarction (damaged heart muscle).
Myocardial Ischemia – recent literature would indicate that MRI is the most accurate test to detect functionally significant coronary blockages resulting in diminished myocardial blood flow. This is generally performed with pharmocologic stress (either dobutamine or adenosine).

How is the procedure performed?

At the time of scheduling the patient will be asked a series of questions including symptoms, prior history of heart disease and interventions, which will allow us to tailor the examination to answer all of the relevant questions that the referring physician may have.  Also, we will need to know if the patient suffers from significant cardiac arrhythmias, which may compromise the quality of the images and diagnostic efficacy.

At the time of the patient’s arrival in our department, the patient will be fully assessed by a technologist and or cardiac trained nurse (BLS/ACLS certified).  The patient’s heart rate, blood pressure, ECG, and history will be reviewed.  Any contra-indications to having an MRI will be reviewed including previous ferromagnetic brain aneurysm clips, working cardiac pacemaker, or other metallic/electrical implants in your body. An intravenous line may be placed into your arm for fluids and injection. We may inject a gadolinium agent, which may allow better diagnostic efficacy depending on the clinical concerns.

The test requires lying still in one of our short bore magnets (which are less claustrophobic than older generation systems) with ECG monitoring leads and surface RF antenna coil placed on your chest.  There will be a vibrating noise, which may be loud during the imaging sequences.  The technologist will be in constant visual and auditory communication with you during your examination and can pause the examination if necessary.  You will be asked to hold your breaths for periods of time ranging from a few seconds to as long as 20 seconds.  Please let the technologist know if you cannot hold your breath and different sequences will be used. After the examination, you will be monitored for a short period in our department before discharged.

Applications of MRI in the heart

Visualization of cardiac and other structures – because the MRI/MRA data can be obtained with differing tissue contrast, in any plain and even volumetrically, exquisite structural detail is now possible.  Post processing and advanced visualization algorithms allow the extraction of specific structures such as structures and tumors within or near the heart, blood vessels and soft tissue structures, which allows the physician to better understand complex anatomy.  This can be invaluable to surgeons in their preoperative planning and very useful in training.

ACD Systems Digital Imaging ACD Systems Digital Imaging
Myxoma of the inferior wall of the left ventricle on MRI and tumor at surgery

Visualization of wall and valve motion –The MRI data is acquired synchronized to the cardiac cycle and can be acquired in any arbitrary plane in three-dimensional space during multiple phases of the cardiac cycle.  The cardiac function can be assessed non-invasively (like echocardiography). Precise quantitative calculation of ejection fraction can be obtained from these data sets as well as qualitative evaluation of wall motion and valve function.  Cross sectional anatomic evaluation of valves with phase velocity mapping to quanititatively measure stenotic and regurgitant jets is now routine thereby clarifying and or confirming findings already noted on echocardiography.  This may obviate the need for cardiac catheterization, which currently serves at most institutions as the final preoperative test before valve replacement and ventricular reduction surgery.

4chMR
coronal
aortic flow

Normal mitral and tricuspid function on a
modified 4-chamber cine acquisition

Severe aortic stenosis and mild insufficiency
frontal projection cine

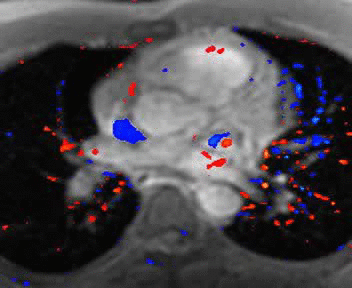

MRI cross sectional cine with phase contrast color
parametric flow overlay.
This allows non-invasive quantification of cardiac output
in a short breathhold scan.
aortic valve
ACD Systems Digital ImagingACD Systems Digital ImagingACD Systems Digital Imaging
Functional bicuspid aortic valve. Note abnormal leaflet motion with asymetric opening of the valve.
MRI cross sectional cine and quantitative phase contrast flow analysis shows normal aortic valve area and velocities

Cardiac MR Perfusion Imaging, Stress Testing, and Viability Imaging

Cardiac nuclear medicine and stress testing has been used since the 1970’s and is well established as a useful test for the non-invasive detection of high grade coronary artery blockages and assessing the heart’s physiologic response to stress.  It is widely available and can be performed in an out patient setting.  It is however limited in its sensitivity and specificity with as many as 30% of patients being falsely reassured that they have no significant coronary artery disease and some being unnecessarily alarmed with equivocal results or falsely positive results leading to an unnecessary cardiac catheterization.

Cardiac MRI stress testing is generally performed within hospitals and is combined with a comprehensive MR examination which also assesses wall and valve motion as well as viability with breath hold sequences designed to detect evidence of previous myocardial infractions (heart attacks) which are often missed by other traditional modalities.

The patient is imaged at rest using cine and perfusion sequences and also again during pharmacologic stress using intravenous Adenosine infusion during blood pressure and ECG monitoring.  Because of MRI’s superior spatial and temporal resolution compared with nuclear medicine, the sensitivity and specificity in detection of high-grade blockages of the coronary arteries is significantly greater with MRI and felt to be at least in the 85-90% range.  Also, occult previous infarctions are often visualized which can also non-invasively confirm coronary artery disease.

perfusion
Filling defect in right atrium on CT scan thought to be a myxoma

Perfusion MRI scan proves that filling defect is flow artifact secondary to septum



Viability MRI images show sub-endocardial infarction in inferior left ventricular wall not visualized on nuclear medicine stress testing.

MR angiography (MRA)- The most exciting forefront of research is reliable non-invasive direct imaging of the coronary artery lumen and plaque in the vessel wall, which is now possible with 64 slice cardiac CT.  While MRA can visualize the coronary arteries in some patients and can reliably exclude proximal narrowing, it is not routinely used for this purpose. New research protocols include: navigator sequences to suppress motion artifacts, newer injectable contrast agents to increase the signal of blood thereby boosting the signal/noise and potential spatial/temporal resolution, as well as newer parallel imaging techinques, may ultimately make coronary MRA a clinical reality. Current research in animal models also includes continuing improvements in data acquisition and visualization which allows following the type and distribution of the plaque while testing newer liped metabolism drugs to treat atherosclerosis. Patients who have already undergone revascularization procedures including stenting and bypass are not good candidates due to the metallic artifacts, which degrade the MRI images.

The common use of MRA is the non-invasive visualization of larger vessels in the chest including the thoracic aorta and pulmonary arteries.  A rapid bolus injection of gadolinium can be used to enhance speed and quality of the visualization making it possible to reliably diagnose aneurysms, dissections, and thrombus formation.  Also, complex anomalies of the heart and blood vessels can be fully assessed with MRI/MRA.  The most common cardiovascular application of MRA is pretreatment planning of carotid artery blockages.

ACD Systems Digital Imaging
Volume rendered display of heart and blood vessels. The arrow points to the pulmonary artery Bolus Gadolinium MRA in patient post left carotid stent placement and with left vertebral stenosis (arrows)

The Holy Grail is a comprehensive MRI/MRA examination of the heart and blood vessels to answer all of the common clinical questions including the diagnosis of:

  1. Visualization of plaque and coronary artery blockage
  2. Physiological assessment of the heart at rest including wall and valve motion and cardiac perfusion
  3. Physiological assessment of the heart’s response to stress including changes in wall and valve motion and cardiac perfusion
  4. Visualization of other structures and blood vessels in the chest, which may be causes of chest pain and morbidity.

Undoubtedly CT and MRI will change the paradigm of cardiac imaging forever and cardiac catheterization will become a primary therapeutic procedure.

How does state of the art MRI stack up to existing technology?

Advantages:

  1. Non-invasive and no ionizing radiation
  2. Three-dimensional modality and is not limited to any particular two-dimensional projections/slice orientation. Can fully assess structures in any plane and offers volumetric information on vessel stenosis and other structures such as cardiac chambers.
  3. Is now the gold standard for cardiac viability, perfusion, and stress testing.
  4. Active research is under way to provide unique information of the coronary arteries including narrowing, type and degree of plaque.  This may allow more accurate diagnosis and better treatment planning.
  5. Can also visualize the pulmonary and systemic arteries of the chest, thereby excluding other dangerous causes of chest pain including pulmonary embolism and aortic dissection.
  6. Can give accurate information of other structures in the chest, which cannot be well otherwise visualized by any other modality such as subtle soft tissue abnormalities including certain kinds of tumors.
  7. It is now a 4D modality and can give accurate information of cardiac muscle and valve function and is not limited in visualization or as operator dependent as echocardiography.

Disadvantages:

  1. Is a relatively lengthy examination (usually takes 30 –60 minutes)
  2. Claustrophobic, patients with arrhythmias, obese patients and patients who are short of breath may not be able to tolerate the examination.
  3. Has difficulty in patients with fast and particularly irregular heart beats.  The images can suffer from registration artifacts and blurring.
  4. It is not currently possible to assess the true degree of luninal narrowing especially in smaller coronary vessels.
  5. Certain implanted hardware including pacemakers contra-indicates an MRI examination.
  6. The technology is not widely available and there are few physicians trained to perform and interpret these examinations.
  7. The proper use of this technology is not yet fully understood by cardiologists and there is inadequate scientific literature with outcome analysis as to its true value in diagnostic testing in specific clinical scenarios.  Much clinical research is still needed to optimize the diagnostic algorithms in cardiac disease.

<NEXT...Cardiac Scoring>
